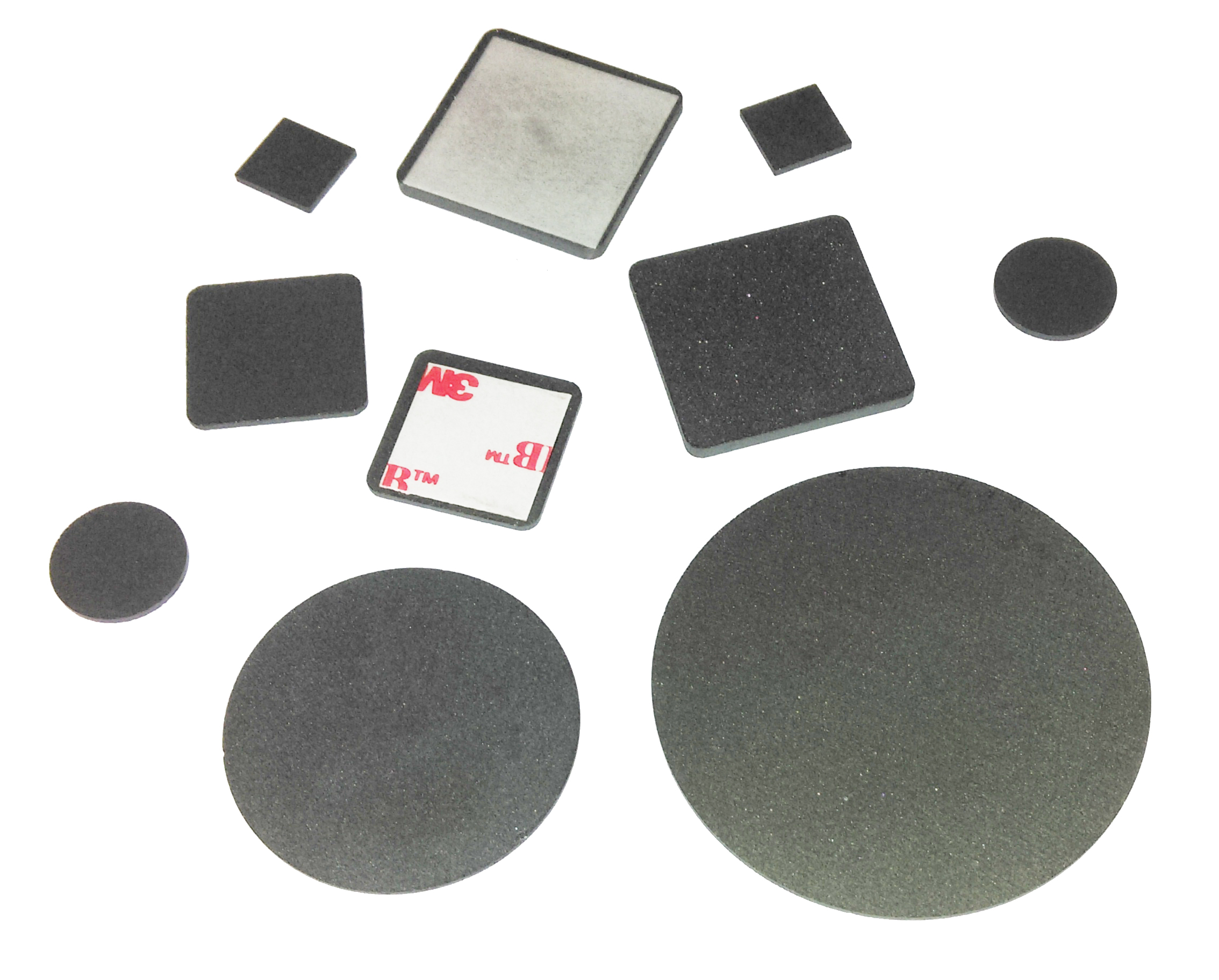

FP/FR-Series

Enlargement
Product Name : FP/FR-Series
Product Description

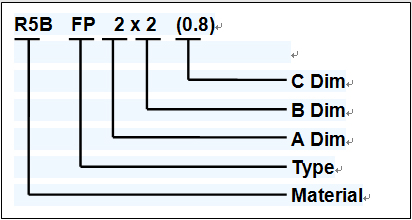

 Ordering Code

proimages/FP-FR-eng.jpg

Product Introduction

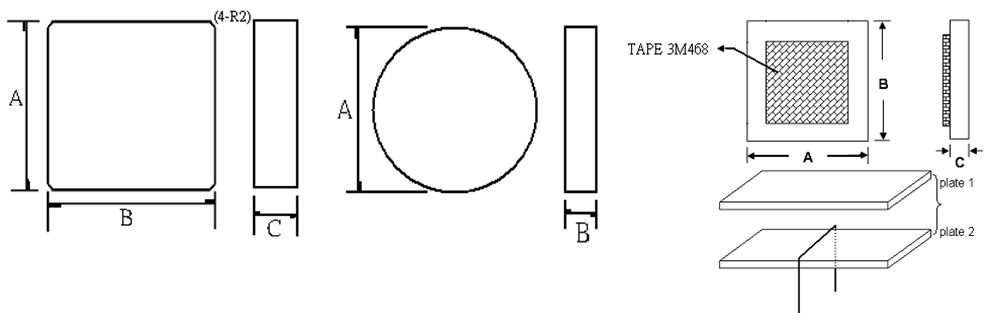

Shape



proimages/FP-FR-2.jpg



Description

  • Suppression of electromagnetic interference generated by microprocessors
  • Prevention of resonance and inhibition coupling phenomena between the two microprocessors
  • To suppress the high frequency noise transmission from the flat line to meet FCC, VDE, VCCI and Taiwan magnetic inspection requirements



Dimensions(m/m)



Material Type  Core (mm) A m/m B m/m C m/m D m/m Inpedance Z1 Inpedance Z2 Z-Winding Ts
R5B FP 11 x 11 x 0.8 11.0±0.3 11.0±0.3 0.8±0.15 - 25 MHz - 15  min 100 MHz - 52 min 0.65x70mm 1
R8 FP 11 x 11 x 0.8 11.0±0.5 11.0±0.5 0.8±0.2 - 25 MHz - 10 min 100 MHz - 35 min 0.65x60mm 1
R5B FP 11 x 11 x 3 11.0±0.3 11.0±0.3 3.0±0.2 - 25 MHz - 16 min  100 MHz - 62 min 0.65x70mm 1
R8 FP 11 x 11 x 3 11.0±0.5 11.0±0.5 3.0±0.5 - 25 MHz - 10 min  100 MHz - 40 min 0.65x60mm 1
R5B FP 15 x 15 x 1 15.0±0.5 15.0±0.5 1.0±0.15 - 25 MHz - 21 min  100 MHz - 66 min  0.65x70mm 1
R8 FP 15 x 15 x 1 15.0±0.5 15.0±0.5 1.0±0.2 - 25 MHz - 12 min  100 MHz - 45 min 0.65x60mm 1
R5B FP 15 x 15 x 3 15.0±0.5 15.0±0.5 3.0±0.2 - 25 MHz - 24 min  100 MHz - 88 min  0.65x70mm 1
R8 FP 15 x 15 x 3 15.0±0.5 15.0±0.5 3.0±0.5 - 25 MHz - 15 min  100 MHz - 50 min 0.65x60mm 1
R5B FP 19 x 19 x 1 19.0±0.5 19.0±0.5 1.0±0.15 - 25 MHz - 27 min  100 MHz - 76 min  0.65x70mm 1
R5C FP 19 x 19 x 1 19.0±0.3 19.0±0.3 1.0±0.1 - 25 MHz - 16  min  100 MHz - 48 min  0.65x50mm 1
R8 FP 19 x 19 x 1 19.0±0.5 19.0±0.5 1.0±0.2 - 25 MHz - 17 min  100 MHz - 55 min 0.65x60mm 1
R8 FP 19 x 19 x 1 19.0±0.5 19.0±0.5 1.0±0.2 16.0±0.85 25 MHz - 16  min  100 MHz - 50 min  0.65x50mm 1
R5B FP 19 x 19 x 3 19.0±0.5 19.0±0.5 3.0±0.2 - 25 MHz - 36 min  100 MHz - 120 min  0.65x70mm 1
R8 FP 19 x 19 x 3 19.0±0.5 19.0±0.5 3.0±0.5 - 25 MHz - 20min  100 MHz - 75 min  0.65x60mm 1
R5B FP 26 x 26 x 0.8 26.0±0.5 26.0±0.5 0.8±0.15 - 25 MHz - 32 min  100 MHz - 80 min  0.65x70mm 1
R8 FP 26 x 26 x 0.8 26.0±0.5 26.0±0.5 0.8±0.2 - 25 MHz - 23 min  100 MHz - 70 min  0.65x70mm 1
R5B FP 26 x 26 x 2 26.0±0.5 26.0±0.5 2.0±0.2 - 25 MHz - 43 min  100 MHz - 120 min  0.65x70mm 1
R8 FP 26 x 26 x 2 26.0±0.5 26.0±0.5 2.0±0.3 - 25 MHz - 30 min  100 MHz - 100 min  0.65x70mm 1
R5B FP 26 x 26 x 3 26.0±0.5 26.0±0.5 3.0±0.2 - 25 MHz - 51 min  100 MHz - 152 min  0.65x70mm 1
R8 FP 26 x 26 x 3 26.0±0.5 26.0±0.5 3.0±0.5 - 25 MHz - 34 min  100 MHz - 102 min  0.65x70mm 1
R8 FP 26 x 26 x 3 26.0±0.5 26.0±0.5 3.0±0.5 24.0±0.85 25 MHz - 34 min  100 MHz - 102 min  0.65x70mm 1
R5B FP 30 x 30 x 1 30.0±0.5 30.0±0.5 1.0±0.15 - 25 MHz - 43 min  100 MHz - 109 min  0.65x100mm 1
R8 FP 30 x 30 x 1 30.0±0.5 30.0±0.5 1.0±0.2 - 25 MHz - 25 min  100 MHz - 78 min  0.65x70mm 1
R5B FP 30 x 30 x 3 30.0±0.5 30.0±0.5 3.0±0.2 - 25 MHz - 64 min  100 MHz - 176 min  0.65x100mm 1
R8 FP 30 x 30 x 3 30.0±0.5 30.0±0.5 3.0±0.5 - 25 MHz - 40 min  100 MHz - 115 min  0.65x80mm 1
R5B FP 38 x 38 x 2 38.0±0.5 38.0±0.5 2.0±0.2 - 25 MHz - 69 min  100 MHz - 184 min  0.65x100mm 1
R8 FP 38 x 38 x 2 38.0±0.5 38.0±0.5 2.0±0.3 - 25 MHz - 45 min  100 MHz - 145 min  0.65x100mm 1
R5B FP 38 x 38 x 3 38.0±0.5 38.0±0.5 3.0±0.2 - 25 MHz - 86 min  100 MHz - 229 min  0.65x100mm 1
R8 FP 38 x 38 x 3 38.0±0.5 38.0±0.5 3.0±0.5 - 25 MHz - 50 min  100 MHz - 150 min  0.65x100mm 1
R3  FR 13.6 x 1.0  13.6±0.3 1.0±0.15 - - 25 MHz - 12 min  100 MHz - 42 min 0.5x60mm 1
R5B FR 20 x 1.0  20.0±0.5 1.0±0.1 - - 25 MHz - 23 min  100 MHz - 100 min 0.5mm 2
R8 FR 20 x 1.0  20.0±0.5 1.0±0.15 - - 25 MHz - 20 min  100 MHz - 100 min 0.5mm 2
R5B FR 35 x 0.8 35.0±0.5 0.8±0.1 - - 25 MHz - 40 min  100 MHz - 180 min 0.5mm 2
R8 FR 35 x 0.8 35.0±0.5 1.0±0.15 - - 25 MHz - 45 min  100 MHz - 180 min 0.5mm 2
