Product Name : FS-Series
Product Description

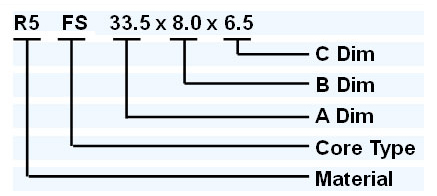

Ordering Code
Product Introduction
Shape
Description
Queen Core offers a line of flat cable EMI suppression cores to attenuate radiated EMI emissions from ribbon cables.
These cores can accommodate a range of cable sizes and conductors.
Using on : Notebook, LCD TV, FAX machine, scanner etc.

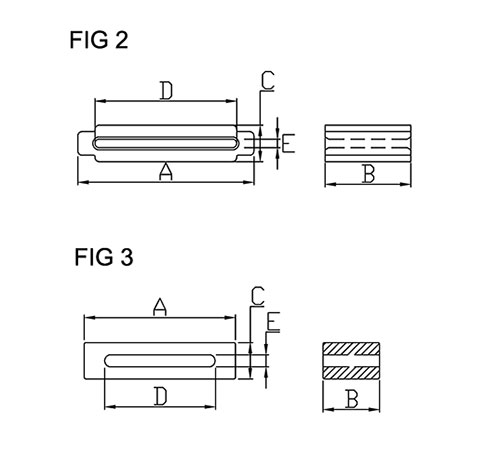

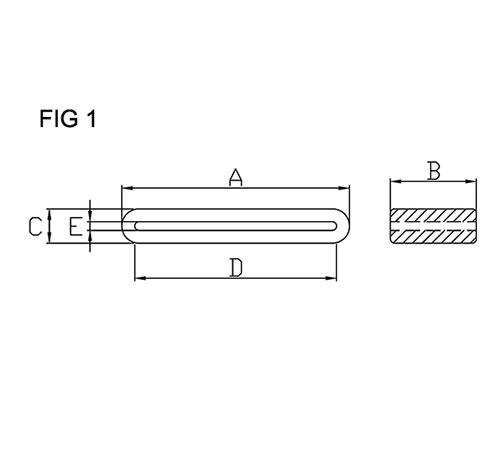

Dimensions(m/m)
| Material | Type | Core (mm) | A m/m | B m/m | C m/m | D m/m | E m/m | Fig | Impedance Z1 | Impedance Z2 |
| R5B | FS | 11 x 8 x 2.3 | 11.0±0.3 | 8.0±0.3 | 2.3±0.2 | 9.0±0.3 | 0.7+0.2/-0.3 | 1 | 100 MHZ - 20 Min | - |
| R5B | FS | 14.5 x 3 x 2.75 | 14.5±0.5 | 3.0±0.3 | 2.75±0.3 | 11.0±0.7 | 0.8±0.15 | 1 | 25 MHZ - 13 Min | 100 MHZ - 45 Min |
| R5B | FS | 14.5 x 5 x 2.75 | 14.5±0.5 | 5.0±0.3 | 2.75±0.3 | 11.0±0.7 | 0.8±0.15 | 1 | 25 MHZ - 16 Min | 100 MHZ - 50 Min |
| R5B | FS | 14.5 x 8 x 2.75 | 14.5±0.5 | 8.0±0.3 | 2.75±0.3 | 11.0±0.7 | 0.8±0.15 | 1 | 25 MHZ - 20 Min | 100 MHZ - 56 Min |
| R5B | FS | 14.5 x 10 x 2.75 | 14.5±0.5 | 10.0±0.3 | 2.75±0.3 | 11.0±0.7 | 0.8±0.15 | 1 | 25 MHZ - 23 Min | 100 MHZ - 60 Min |
| R5B | FS | 14.5 x 12 x 2.75 | 14.5±0.5 | 12.0±0.3 | 2.75±0.3 | 11.0±0.7 | 0.8±0.15 | 1 | 25 MHZ - 12 Min | 100 MHZ - 45 Min |
| R5B | FS | 14.5 x 12 x 2.75 | 14.5±0.5 | 12.0±0.3 | 2.75±0.3 | 11.0±0.7 | 0.8±0.15 | 1 | 25 MHZ - 28 Min | 100 MHZ - 65 Min |
| R5 | FS | 14.5 x 15 x 2.75 | 14.5±0.5 | 12.0±0.3 | 2.75±0.3 | 11.0±0.7 | 0.8±0.1 | 1 | 25 MHZ - 30 Min | 100 MHZ - 96±20 |
