Product Name : R-Series
Product Description

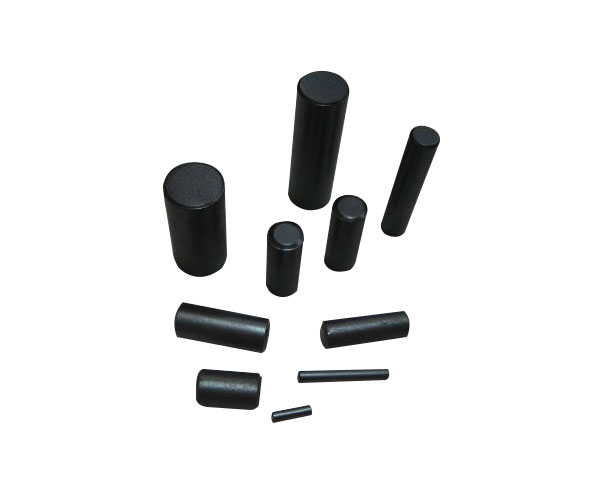

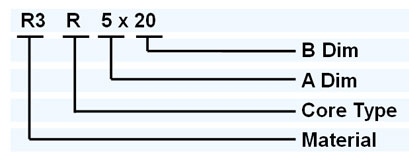

Ordering Code

proimages/Product/ROD_CORES/R-03e-01.jpg

Product Introduction
Shape

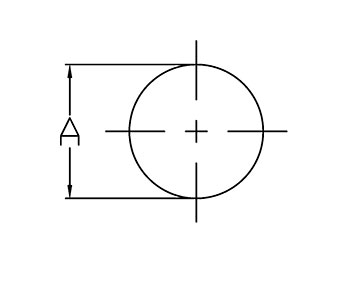

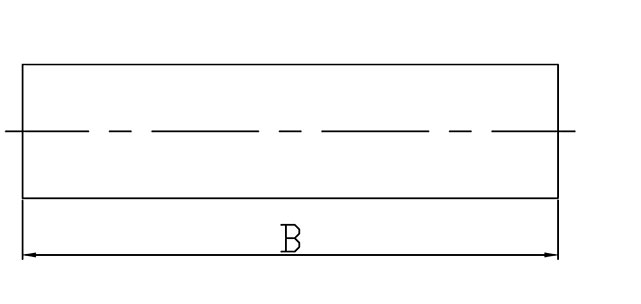

proimages/Product/ROD_CORES/R-Model01.jpgproimages/Product/ROD_CORES/R-Model02.jpg

Description

R TYPE is mainly used as the magnetic cores of the coils which do not require adjustments as well as magnetic shield.



Dimensions(m/m)
Material Type Core (mm) Core (mm) A m/m B m/m
R3 R 2 x 4 R3 R 2 x 4 2.0±0.2 4.0±0.3
R3 R 2 x 8 R3 R 2 x 8 2.0±0.2 8.0±0.3
R3 R 3 x 8 R3 R 3 x 8 3.0±0.2 8.0±0.3
R3 R 3 x 10 R3 R 3 x 10 3.0±0.2 10.0±0.3
R5S R 3 x 10 R5S R 3 x 10 3.0±0.15 10.0±0.3
R3 R 4 x 10 R3 R 4 x 10 4.0±0.2 10.0±0.3
R3 R 4 x 12 R3 R 4 x 12 4.0±0.2 12.0±0.3
R3 R 4 x 15 R3 R 4 x 15 4.0±0.2 15.0±0.4
R8 R 4 x 15 R8 R 4 x 15 4.0±0.2 15.0±0.4
R3 R 4.5 x 7 R3 R 4.5 x 7 4.5±0.15 7.0±0.3
R3 R 4.5 x 11 R3 R 4.5 x 11 4.5±0.15 11.0±0.3
R3 R 5 x 15 R3 R 5 x 15 5.0±0.3 15.0±0.4
R2A R 5 x 16 R2A R 5 x 16 5.0±0.15 16±0.4
R5B R 5 x 20 R5B R 5 x 20 5.0±0.3 20.0±0.5
R3 R 5 x 20 R3 R 5 x 20 5.0±0.3 20.0±0.5
R5S R 5 x 20 R5S R 5 x 20 5.0±0.15 20.0±0.4
R2A R 5 x 22 R2A R 5 x 22 5.0±0.15 22±0.4
R2A R 6 x 20 R2A R 6 x 20 6.0±0.3 20.0±0.5
R5B R 6 x 20 R5B R 6 x 20 6.0±0.2 20.0±0.5
R3 R 6 x 20 R3 R 6 x 20 6.0±0.3 20.0±0.5
R5B R 6 x 25 R5B R 6 x 25 6.0±0.2 25.0±0.5
R3 R 6 x 25 R3 R 6 x 25 6.0±0.3 25.0±0.5
R5B R 6 x 30 R5B R 6 x 30 6.0±0.2 30.0±0.5
R3 R 6 x 30 R3 R 6 x 30 6.0±0.3 30.0±0.5
R5S R 6 x 30 R5S R 6 x 30 6.0±0.2 30.0±0.5
R3 R 8.6 x 28 R3 R 8.6 x 28 8.6±0.3 28.0±0.5
R5S R 10 x 12 R5S R 10 x 12 10.0±0.3 12.0±0.3
R3 R 10 x 20 R3 R 10 x 20 10.0±0.4 20.0±0.4
R5S R 10 x 25 R5S R 10 x 25 10.0±0.3 25.0±0.5
R3 R 10 x 30 R3 R 10 x 30 10.0±0.4 30.0±0.5
R5S R 10 x 33 R5S R 10 x 33 10.0±0.3 33.0±0.5
