R6H-Series
Enlargement
Product Name : R6H-Series
Product Description

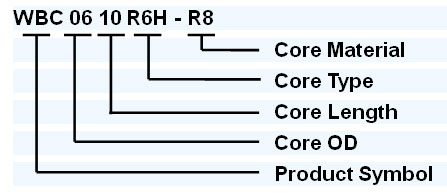

Ordering Code
Product Introduction
Shape
Description

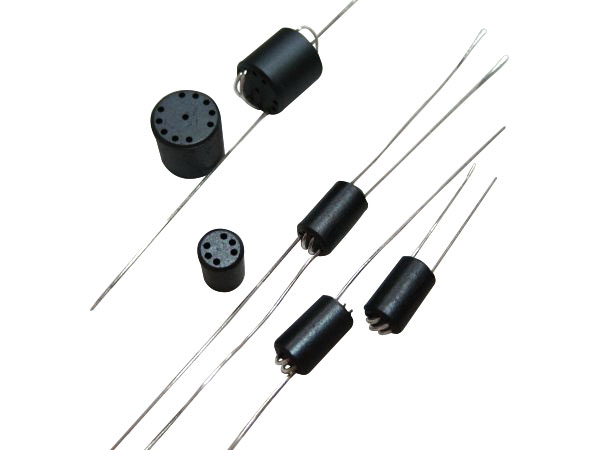

R6H TYPE Cores are used for Wide Band Choke. The impedance is substantially resistive and constant.
The chocks consist of rod-type bodies with six or eight axial holes through which wire is threaded to from a 0.5, 1.0, 1.5x2, 2.5, 3 or 3.5 turns coil.

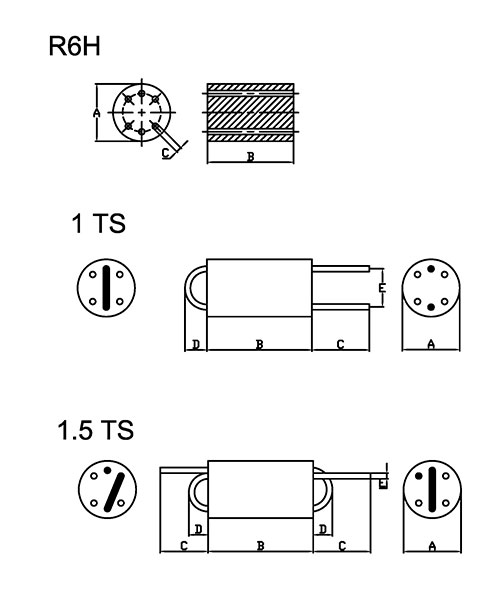

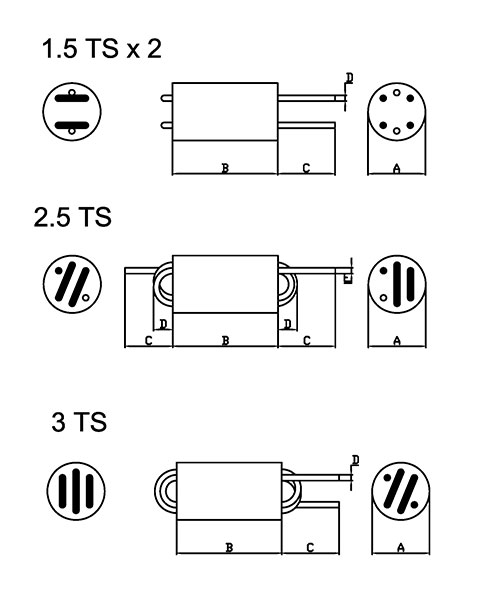

Dimensions(m/m)
| PART NO. | TURNS | IMPEDANCE 10MHz | IMPEDANCE 50MHz | IMPEDANCE 100MHz |
| WBC0610R6H-R8 | 1.0 | 65 | 220 | 315 |
| WBC0610R6H-R8 | 1.5 | 120 | 415 | 600 |
| WBC0610R6H-R8 | 1.5 x 2 | 120 | 415 | 600 |
| WBC0610R6H-R8 | 2.5 | 235 | 880 | 1200 |
| WBC0610R6H-R8 | 3.0 | 280 | 1130 | 1400 |
| WBC0610R6H-R78 | 1.0 | 95 | 235 | 310 |
| WBC0610R6H-R78 | 1.5 | 175 | 445 | 590 |
| WBC0610R6H-R78 | 1.5 x 2 | 175 | 445 | 590 |
| WBC0610R6H-R78 | 2.5 | 360 | 920 | 1100 |
| WBC0610R6H-R78 | 3.0 | 440 | 1180 | 1250 |
| WBC0610R6H-R5B | 1.0 | 110 | 220 | 270 |
| WBC0610R6H-R5B | 1.5 | 200 | 420 | 500 |
| WBC0610R6H-R5B | 1.5 x 2 | 200 | 420 | 500 |
| WBC0610R6H-R5B | 2.5 | 390 | 830 | 910 |
| WBC0610R6H-R5B | 3.0 | 490 | 1000 | 1050 |
| WBC0610R6H-R6 | 1.0 | 150 | 190 | 210 |
| WBC0610R6H-R6 | 1.5 | 283 | 360 | 380 |
| WBC0610R6H-R6 | 1.5 x 2 | 283 | 360 | 380 |
| WBC0610R6H-R6 | 2.5 | 540 | 680 | 700 |
| WBC0610R6H-R6 | 3.0 | 680 | 870 | 820 |
