Product Name : RH-Series
Product Description

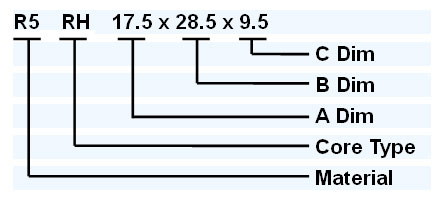

Ordering Code
Product Introduction

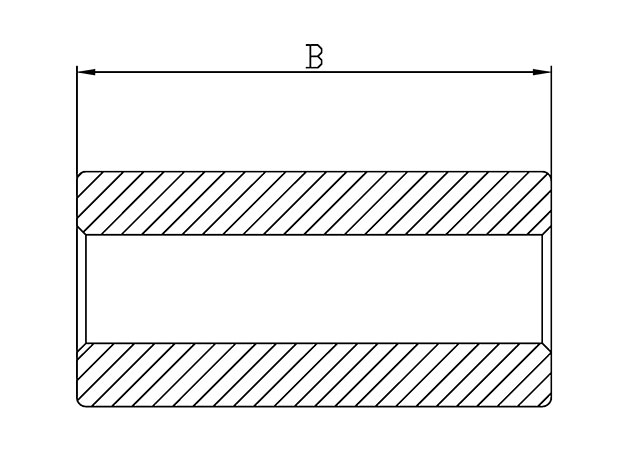

Shape
Description
Queen Core offers a broad cable EMI suppression cores with guaranteed impedance specifications over a wide frequency range.
Ferrite beads core.
The ferrite beads core are the tubular shaped ferrite core to be passed through beads of other elements or used as inductors by passing through Wir.
They are used for high frequency choking cancelling of parasitic oscillation and noise.
Dimensions(m/m)
| Material | Type | Core (mm) | A m/m | B m/m | C m/m | Impedance Z1 | Impedance Z2 |
| R6 | RH | 3 x 1.5 x 1 | 3.0±0.2 | 1.5±0.2 | 1.0±0.1 | 25 MHZ - 10 Min | 100 MHZ - 31±20% |
| R6 | RH | 3 x 1.5 x 1.2 | 3.0±0.2 | 1.5±0.2 | 1.2±0.15 | 25 MHZ - 8 Min | 100 MHZ - 20 Min |
| R5B | RH | 3 x 2 x 1 | 3.0±0.2 | 2±0.2 | 1.0±0.1 | 25 MHZ - 15 Min | 100 MHZ - 37±20% |
| R5C | RH | 3 x 3 x 1 | 3.0±0.2 | 3±0.3 | 1.0±0.1 | 25 MHZ - 15 Min | 100 MHZ - 45±20% |
| R5C | RH | 3 x 3 x 1.2 | 3.0±0.2 | 3±0.3 | 1.2±0.15 | 25 MHZ - 15 Min | 100 MHZ - 38±20% |
| R6 | RH | 3 x 3 x 1 | 3.0±0.2 | 3±0.3 | 1.0±0.1 | 25 MHZ - 20 Min | 100 MHZ - 41±20% |
| R5 | RH | 3.5 x 4 x 1 | 3.5±0.2 | 4.0±0.3 | 1.0±0.1 | 25 MHZ - 25 Min | 100 MHZ - 54±20% |
| R5 | RH | 3.5 x 4 x 1.2 | 3.5±0.2 | 4.0±0.3 | 1.2±0.1 | 25 MHZ - 25 Min | 100 MHZ - 50±20% |
| R5B | RH | 3.5 x 4 x 1 | 3.5±0.2 | 4.0±0.3 | 1.0±0.1 | 25 MHZ - 30 Min | 100 MHZ - 63±20% |
| R5B | RH | 3.5 x 4 x 1.2 | 3.5±0.2 | 4.0±0.3 | 1.2±0.1 | 25 MHZ - 20 Min | 100 MHZ - 55±20% |
| R6 | RH | 3.5 x 4 x 1 | 3.5±0.2 | 4.0±0.3 | 1.0±0.1 | 25 MHZ - 25 Min | 100 MHZ - 50±20% |
| R5 | RH | 3 x 6 x 1 | 3.0±0.2 | 6±0.3 | 1.0±0.1 | 25 MHZ - 35 Min | 100 MHZ - 72±20% |
| R6 | RH | 3 x 6 x 1 | 3.0±0.2 | 6±0.3 | 1.0±0.1 | 25 MHZ - 35 Min | 100 MHZ - 61±20% |
| R56 | RH | 3.5 x 2 x 1.3 | 3.5±0.2 | 2.0±0.2 | 1.3±0.15 | 25 MHZ - 13 Min | 100 MHZ - 25 Min |
| R6 | RH | 3.5 x 2.4 x 1 | 3.5±0.2 | 2.4±0.3 | 1.0±0.15 | 25 MHZ - 15 Min | 100 MHZ - 39±20% |
| R5C | RH | 3.5 x 2.7 x 0.8 | 3.5±0.2 | 2.7±0.3 | 0.8±0.1 | 25 MHZ - 20 Min | 100 MHZ - 49±20% |
| R5 | RH | 3.5 x 3 x 0.8 | 3.5±0.2 | 3.0±0.3 | 0.8±0.1 | 25 MHZ - 20 Min | 100 MHZ - 46±20% |
| R5 | RH | 3.5 x 3 x 1 | 3.5±0.2 | 3.0±0.3 | 1.0±0.1 | 25 MHZ - 20 Min | 100 MHZ - 44±20% |
| R5 | RH | 3.5 x 3 x 1.2 | 3.5±0.2 | 3.0±0.3 | 1.2±0.15 | 25 MHZ - 18 Min | 100 MHZ - 25 Min |
| R5B | RH | 3.5 x 3 x 1.2 | 3.5±0.2 | 3.0±0.3 | 1.2±0.15 | 25 MHZ - 15 Min | 100 MHZ - 39±20% |
| R5B | RH | 3.5 x 3 x 1.2 | 3.5±0.2 | 3.0±0.3 | 1.2±0.15 | 25 MHZ - 18 Min | 100 MHZ - 25 Min |
| R5B | RH | 3.5 x 3 x 1.3 | 3.5±0.2 | 3.0±0.3 | 1.3±0.15 | 25 MHZ - 15 Min | 100 MHZ - 42±20% |
| R6 | RH | 3.5 x 3 x 1 | 3.5±0.2 | 3.0±0.3 | 1.0±0.15 | 1 MHZ - 8 Min | 5 MHZ - 18 Min |
| R6 | RH | 3.5 x 3 x 1.2 | 3.5±0.2 | 3.0±0.3 | 1.2±0.15 | 25 MHZ - 15 Min | 100 MHZ - 25 Min |
| R6 | RH | 3.5 x 3 x 1.6 | 3.5±0.2 | 3.0±0.3 | 1.6±0.15 | 25 MHZ - 15 Min | 100 MHZ - 34±20% |
| R78 | RH | 3.5 x 3 x 1.2 | 3.5±0.2 | 3.0±0.3 | 1.2±0.15 | 25 MHZ - 18 Min | 100 MHZ - 35 Min |
| R8 | RH | 3.5 x 3 x 1.2 | 3.5±0.2 | 3.0±0.3 | 1.2±0.15 | 25 MHZ - 15 Min | 100 MHZ - 52±20% |
| R8B | RH | 3.5 x 3 x 1.2 | 3.5±0.2 | 3.0±0.3 | 1.2±0.15 | 25 MHZ - 8 Min | 100 MHZ - 45±20% |
| R5 | RH | 3.5 x 3.1 x 1.8 | 3.5±0.2 | 3.1±0.3 | 1.8±0.15 | 25 MHZ - 30 Min | 100 MHZ - 35±20% |
| R6 | RH | 3.5 x 3.2 x 1 | 3.5±0.2 | 3.2±0.3 | 1.0±0.15 | 1 MHZ - 10±2 | 5 MHZ - 21±3 |
| R5B | RH | 3.5 x 3.25 x 1.3 | 3.5±0.2 | 3.25±0.3 | 1.3±0.15 | 25 MHZ - 19 Min | 100 MHZ - 32 Min |
| R5C | RH | 3.5 x 3.25 x 1.3 | 3.5±0.2 | 3.25±0.3 | 1.3±0.15 | 25 MHZ - 20 Min | 100 MHZ - 46±20% |
| R5C | RH | 3.5 x 3.25 x 1.6 | 3.5±0.2 | 3.25±0.3 | 1.6±0.15 | 25 MHZ - 15 Min | 100 MHZ - 40±20% |
| R7 | RH | 3.5 x 3.25 x 1.6 | 3.5±0.2 | 3.25±0.3 | 1.6±0.15 | 25 MHZ - 15 Min | 100 MHZ - 43±20% |
| R5C | RH | 3.5 x 3.3 x 1.65 | 3.5±0.2 | 3.3±0.3 | 1.65±0.15 | 25 MHZ - 15 Min | 100 MHZ - 25 Min |
| R5 | RH | 3.5 x 3.5 x 1 | 3.5±0.15 | 3.5±0.15 | 1.0±0.15 | - | 100 MHZ - 45±10Ω |
| R6 | RH | 3.5 x 3.5 x 1.2 | 3.5±0.2 | 3.5±0.3 | 1.2±0.15 | 25 MHZ - 20 Min | 100 MHZ - 30 Min |
| R8 | RH | 3.5 x 3.5 x 1.2 | 3.5±0.2 | 3.5±0.3 | 1.2±0.15 | 25 MHZ - 22 Min | 100 MHZ - 42 Min |
| R6 | RH | 3.5 x 4 x 1.2 | 3.5±0.2 | 4.0±0.3 | 1.2±0.15 | 25 MHZ - 20 Min | 100 MHZ - 30 Min |
| R5C | RH | 3.5 x 4.05 x 1.65 | 3.5±0.2 | 4.05±0.3 | 1.65±0.25 | 25 MHZ - 15 Min | 100 MHZ - 44±20% |
| R5 | RH | 3.5 x 4.5 x 0.8 | 3.5±0.2 | 4.5±0.3 | 0.8±0.1 | 25 MHZ - 30 Min | 100 MHZ - 58±20% |
| R5 | RH | 3.5 x 4.5 x 1.2 | 3.5±0.2 | 4.5±0.3 | 1.2±0.15 | 25 MHZ - 28 Min | 100 MHZ - 58±20% |
| R5B | RH | 3.5 x 4.5 x 0.8 | 3.5±0.2 | 4.5±0.3 | 0.8±0.1 | 25 MHZ - 35 Min | 100 MHZ - 69±20% |
| R5B | RH | 3.5 x 4.5 x 1 | 3.5±0.2 | 4.5±0.3 | 1.0±0.1 | 25 MHZ - 30 Min | 100 MHZ - 70±20% |
| R78 | RH | 3.5 x 4.5 x 1.2 | 3.5±0.2 | 4.5±0.3 | 1.2±0.15 | 25 MHZ - 25 Min | 100 MHZ - 71±20% |
| R5B | RH | 3.5 x 4.7 x 0.8 | 3.5±0.2 | 4.7±0.3 | 0.8±0.1 | 25 MHZ - 30 Min | 100 MHZ - 70±20% |
| R6 | RH | 3.5 x 4.7 x 0.8 | 3.5±0.2 | 4.7±0.3 | 0.8±0.1 | 25 MHZ - 30 Min | 100 MHZ - 57±20% |
| R5 | RH | 3.5 x 5 x 1.2 | 3.5±0.2 | 5.0±0.3 | 1.2±0.15 | 25 MHZ - 25 Min | 100 MHZ - 35 Min |
| R5 | RH | 3.5 x 5 x 1.6 | 3.5±0.2 | 5.0±0.3 | 1.6±0.15 | 25 MHZ - 20 Min | 100 MHZ - 35 Min |
| R5 | RH | 3.5 x 5 x 1.8 | 3.5±0.2 | 5.0±0.3 | 1.8±0.15 | 25 MHZ - 20 Min | 100 MHZ - 30 Min |
| R56 | RH | 3.5 x 5 x 1.6 | 3.5±0.2 | 5.0±0.3 | 1.6±0.15 | 25 MHZ - 25 Min | 100 MHZ - 35 Min |
| R5B | RH | 3.5 x 5 x 1.2 | 3.5±0.2 | 5.0±0.3 | 1.2±0.15 | 25 MHZ - 30 Min | 100 MHZ - 60±20 |
