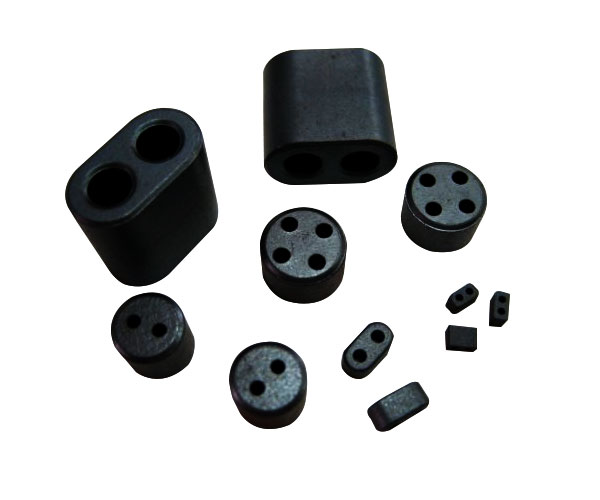

RID-Series

Enlargement
Product Name : RID-Series
Product Description

Ordering Code

proimages/Product/BALUN_CORES/RID-03e.jpg

Product Introduction
Shape

proimages/Product/BALUN_CORES/RID-Model01.jpgproimages/Product/BALUN_CORES/RID-Model02.jpg



Description

Balun Cores employed in balance-unbalance transformers find wide application today not only in the input circuits to TV and FM tuners but also in CATV networks installations.



Dimensions(m/m)
Material Type Core (mm) A m/m B m/m C m/m D m/m E m/m REF
R6 RID 2 x 1.5 x 3.5 (1.0) 2.0±0.15 1.5±0.2 3.5±0.2 1.0±0.15 1.5
R8 RID 2 x 2 x 3.5 (0.8) 2.0±0.15 2.0±0.15 3.5±0.2 0.8±0.1 1.5
R6 RID 2 x 2 x 3.5 (0.8) 2.0±0.15 2.0±0.15 3.5±0.2 0.8±0.1 1.5
R5B RID 2 x 2 x 3.5 (1.0) 2.0±0.2 2.0±0.2 3.5±0.2 1.0±0.15 1.5
R5C RID 2 x 2 x 3.5 (1.0) 2.0±0.2 2.0±0.2 3.5±0.2 1.0±0.15 1.5
R6 RID 2 x 2 x 3.5 (1.0) 2.0±0.2 2.0±0.2 3.5±0.2 1.0±0.15 1.5
R6 RID 2 x 2 x 3.5 (0.8) 2.0±0.2 2.0±0.2 3.5±0.2 0.8±0.15 1.5
R8 RID 2 x 2 x 3.5 (1.0) 2.0±0.15 2.0±0.2 3.5±0.2 1.0±0.15 1.5
R6 RID 2 x 2.2 x 3.5 (0.8) 2.0±0.15 2.2±0.15 3.5±0.2 0.8±0.1 1.5
R6 RID 2 x 2.2 x 3.5 (1.0) 2.0±0.15 2.2±0.15 3.5±0.2 1.0±0.15 1.5
R6 RID 2 x 2.3 x 3.5 (1.0) 2.0±0.2 2.3±0.3 3.5±0.2 1.0±0.1 1.5
R5C RID 2 x 2.35 x 3.45 (0.75) 2.0±0.15 2.35±0.25 3.45±0.25 0.75±0.25 1.5
R6 RID 2 x 2.4 x 3.5 (0.8) 2.0±0.15 2.4±0.2 3.5±0.2 0.8±0.1 1.5
R6 RID 2 x 2.4 x 3.5 (1.0) 2.0±0.15 2.4±0.2 3.5±0.2 1.0±0.15 1.5
R6 RID 2 x 2.5 x 3.5 (1.0) 2.0±0.15 2.5±0.2 3.5±0.2 1.0±0.15 1.5
R8 RID 2 x 2.5 x 3.5 (1.0) 2.0±0.2 2.5±0.25 3.5±0.3 1.0±0.15 1.5
R6 RID 2 x 2.6 x 3.5 (0.8) 2.0±0.15 2.6±0.2 3.5±0.2 0.8±0.1 1.5
R6 RID 2 x 2.6 x 3.5 (1.0) 2.0±0.15 2.6±0.2 3.5±0.2 1.0±0.15 1.5
R6 RID 2 x 2.8 x 3.5 (0.8) 2.0±0.15 2.8±0.2 3.5±0.2 0.8±0.1 1.5
R6 RID 2 x 2.8 x 3.5 (1.0) 2.0±0.15 2.8±0.2 3.5±0.2 1.0±0.15 1.5
R3 RID 2 x 2.8 x 3.5 (1.0) 2.0±0.15 2.8±0.2 3.5±0.2 1.0±0.15 1.5
R6 RID 2 x 3 x 3.5 (0.8) 2.0±0.15 3.0±0.2 3.5±0.2 0.8±0.1 1.5
R5 RID 2 x 3 x 3.5 (1.0) 2.0±0.2 3.0±0.2 3.5±0.2 1.0±0.15 1.5
R6 RID 2 x 3 x 3.5 (1.0) 2.0±0.15 3.0±0.2 3.5±0.2 1.0±0.1 1.5
R6 RID 2.15 x 1.5 x 3.5 (1.0) 2.15±0.2 1.5±0.2 3.5±0.2 1.0±0.15 1.5
R3 RID 2.3 x 7.5 x 7.5 (0.8) 2.3±0.2 7.5±0.2 7.5±0.3 0.8±0.1 3.5
R5B RID 2.3 x 7.5 x 7.5 (0.8) 2.3±0.2 7.5±0.2 7.5±0.3 0.8±0.1 3.5
R3 RID 2.65 x 2 x 5.35 (1.2) 2.65±0.2 2.0±0.2 5.35±0.3 1.2±0.15 2.5
R6 RID 2.65 x 2.1 x 5.35 (1.2) 2.65±0.2 2.1±0.2 5.35±0.3 1.2±0.15 2.5
R6 RID 2.65 x 3 x 5.35 (1.2) 2.65±0.2 3.0±0.2 5.35±0.3 1.2±0.15 2.5
R6 RID 2.9 x 2 x 6.5 (1.0) 2.9±0.2 2.0±0.2 6.5±0.3 1.0±0.15 3.5
R6 RID 3 x 1.55 x 5.2 (1.0) 3.0±0.2 1.55±0.2 5.2±0.3 1.0±0.15 2.25
R3 RID 3 x 2 x 5 (1.5) 3.0±0.2 2.0±0.2 5.0±0.3 1.5±0.15 2.25
R5B RID 3 x 2 x 5 (1.5) 3.0±0.2 2.0±0.2 5.0±0.3 1.5±0.15 2.25
R6 RID 3 x 2 x 5 (1.5) 3.0±0.2 2.0±0.2 5.0±0.3 1.5±0.15 2.25
R6 RID 3 x 2 x 5 (1.2) 3.0±0.2 2.0±0.2 5.0±0.3 1.2±0.15 2.25
R5B RID 3 x 2 x 5 (1.2) 3.0±0.2 2.0±0.2 5.0±0.3 1.2±0.15 -
R6 RID 3 x 2 x 5 (1.2) 3.0±0.2 2.0±0.2 5.0±0.3 1.2±0.15 -
R8 RID 3 x 2 x 5 (1.2) 3.0±0.2 2.0±0.2 5.0±0.3 1.2±0.15 2.25
R6 RID 3 x 2 x 5.5 (1.2) 3.0±0.15 2.0±0.2 5.5±0.15 1.2±0.15 2.25
R3 RID 3 x 2 x 6.5 (1.0) 3.0±0.2 2.0±0.2 6.5±0.3 1.0±0.15 3.5
R5B RID 3 x 2 x 6.5 (1.0) 3.0±0.2 2.0±0.2 6.5±0.3 1.0±0.15 3.5
R5 RID 3 x 2 x 6.5 (1.0) 3.0±0.2 2.0±0.2 6.5±0.3 1.0±0.15 3.5
R6 RID 3 x 2 x 6.5 (1.0) 3.0±0.2 2.0±0.2 6.5±0.3 1.0±0.15 3.5
R3 RID 3 x 3 x 5 (1.5) 3.0±0.2 3.0±0.2 5.0±0.3 1.5±0.15 2.25
R5 RID 3 x 3 x 5 (1.5) 3.0±0.2 3.0±0.2 5.0±0.3 1.5±0.15 2.25
R6 RID 3 x 3 x 5 (1.5) 3.0±0.2 3.0±0.2 5.0±0.3 1.5±0.15 2.25
R6 RID 3 x 3 x 5 (1.2) 3.0±0.2 3.0±0.2 5.0±0.3 1.2±0.15 2.25
R3 RID 3 x 3 x 5.2 (1.0) 3.0±0.2 3.0±0.3 5.2±0.3 1.0±0.15 2.5
R5 RID 3 x 3 x 5.2 (1.0) 3.0±0.2 3.0±0.3 5.2±0.3 1.0±0.15 2.5
R6 RID 3 x 3 x 5.2 (1.0) 3.0±0.2 3.0±0.3 5.2±0.3 1.0±0.15 2.5
R5 RID 3 x 3 x 5.2 (1.0) 3.0±0.2 3.0±0.2 5.2±0.3 1.0±0.15 -
R6 RID 3 x 3 x 5.5 (1.2) 3.0±0.2 3.0±0.3 5.5±0.3 1.2±0.15 2.5
R6 RID 3 x 3 x 5.5 (1.2)-H 3.0±0.2 3.0±0.3 5.5±0.3 1.2±0.15 -
R6 RID 3 x 3 x 6.5 (1.0) 3.0±0.2 3.0±0.3 6.5±0.3 1.0±0.15 3.5
R6 RID 3 x 3 x 6.5 (1.0) 3.0±0.2 3.0±0.2 6.5±0.3 1.0±0.15 -
R3 RID 3 x 5 x 5 (1.2) 3.0±0.2 5.0±0.3 5.0±0.3 1.2±0.15 2.25
R6 RID 3 x 5 x 5 (1.2) 3.0±0.2 5.0±0.3 5.0±0.3 1.2±0.15 2.25
R3 RID 3 x 5 x 5 (1.5) 3.0±0.2 5.0±0.3 5.0±0.3 1.5±0.15 2.25
R8 RID 3 x 5 x 5 (1.2) 3.0±0.3 5.0±0.3 5.0±0.25 1.2±0.25 2.25
R6 RID 3 x 5 x 5.5 (1.2) 3.0±0.2 5.0±0.3 5.5±0.3 1.2±0.15 2.5
R6 RID 3 x 6 x 5.5 (1.0) 3.0±0.2 6.0±0.3 5.5±0.3 1.0±0.15 2.5
R5B RID 3.5 x 3.2 x 6.4 (1.8) 3.5±0.2 3.2±0.2 6.4±0.3 1.8±0.15 3
R8 RID 3.5 x 3.2 x 6.4 (1.8) 3.5±0.4 3.2±0.4 6.4±0.25 1.8±0.25 3
R8 RID 3.5 x 5 x 6.4 (1.8) 3.5±0.3 5.0±0.3 6.4±0.25 1.8±0.25 3
R5 RID 3.5 x 5 x 6.5 (1.8) 3.5±0.2 5.0±0.3 6.5±0.3 1.8±0.15 3
R6 RID 4.1 x 3.2 x 7 (1.5) 4.1±0.2 3.2±0.2 7.0±0.3 1.5±0.15 2.9
R3 RID 4.1 x 3.2 x 7 (1.5) 4.1±0.2 3.2±0.2 7.0±0.3 1.5±0.15 2.9
R5C RID 4.1 x 3.2 x 7 (1.8) 4.1±0.2 3.2±0.2 7.0±0.3 1.8±0.15 2.9
R5 RID 4.1 x 3.2 x 7 (1.8) 4.1±0.2 3.2±0.2 7.0±0.3 1.8±0.15 2.9
R6 RID 4.1 x 3.2 x 7 (1.8) 4.1±0.2 3.2±0.2 7.0±0.3 1.8±0.15 2.9
R5 RID 4.1 x 6 x 7 (1.8) 4.1±0.2 6.0±0.3 7.0±0.3 1.8±0.15 2.9
R3 RID 4.1 x 6.6 x 7 (1.8) 4.1±0.2 6.6±0.3 7.0±0.3 1.8±0.15 2.9
R5 RID 4.1 x 6.6 x 7 (1.8) 4.1±0.2 6.6±0.3 7.0±0.3 1.8±0.15 2.9
R6 RID 4.1 x 6.6 x 7 (1.8) 4.1±0.2 6.6±0.3 7.0±0.3 1.8±0.15 2.9
R6 RID 4.1 x 6.8 x 7 (1.8) 4.1±0.2 6.8±0.3 7.0±0.3 1.8±0.15 2.9
R5C RID 4.2 x 3.1 x 7 (1.7) 4.2±0.25 3.1±0.25 7.0±0.25 1.7±0.2 2.9
R78 RID 4.2 x 3.2 x 7 (1.8) 4.2±0.2 3.2±0.2 7.0±0.3 1.8±0.15 2.9
R5C RID 4.2 x 6.2 x 7 (1.7) 4.2±0.25 6.2±0.25 7.0±0.25 1.7±0.2 2.9
R3 RID 7.5 x 4 x 13.5 (3.8) 7.5±0.3 4.0±0.3 13.5±0.3 3.8±0.25 5.7
R3 RID 7.5 x 7 x 13.5 (3.8) 7.5±0.3 7.0±0.3 13.5±0.3 3.8±0.25 5.7
R8 RID 7.5 x 7 x 13.5 (3.8) 7.5±0.3 7.0±0.3 13.5±0.5 3.8±0.25 5.7
R78 RID 7.5 x 13.4 x 13.3 (3.8) 7.5±0.3 13.4±0.3 13.3±0.6 3.8±0.25 5.7
R8 RID 7.5 x 14 x 13.5 (3.8) 7.5±0.3 14.0±0.5 13.5±0.5 3.8±0.25 5.7
R3 RID 7.5 x 14.35 x 13.3 (3.8) 7.5±0.35 14.35±0.5 13.3±0.6 3.8±0.25 5.7
R5C RID 7.5 x 14.35 x 13.3 (3.8) 7.5±0.35 14.35±0.5 13.3±0.6 3.8±0.25 5.7
