Product Name : FH TYPE
Product Description

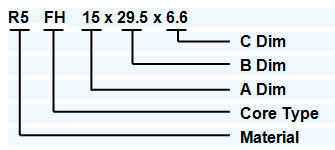

Ordering Code
Product Introduction
Shape
Description

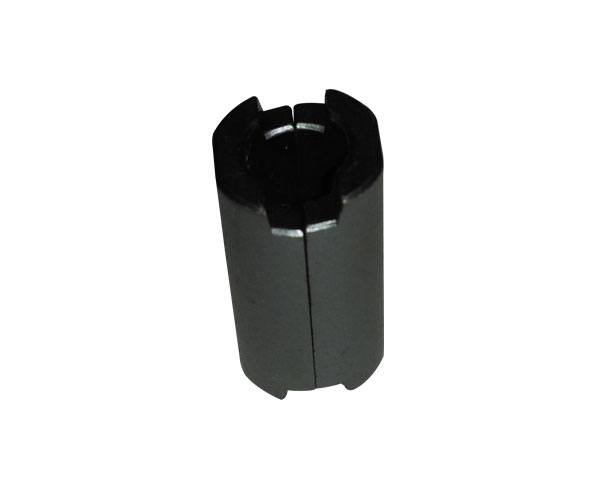

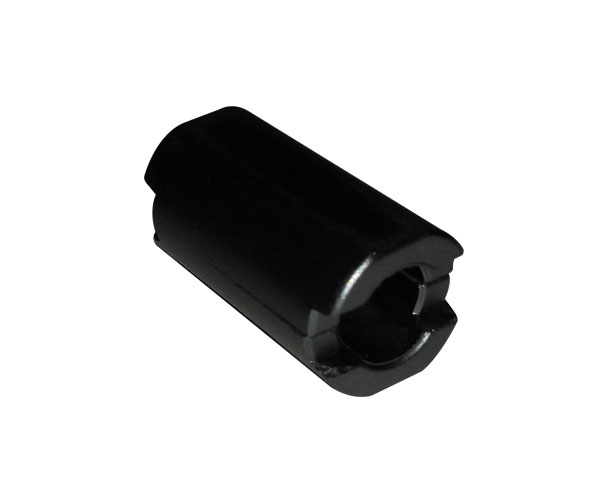

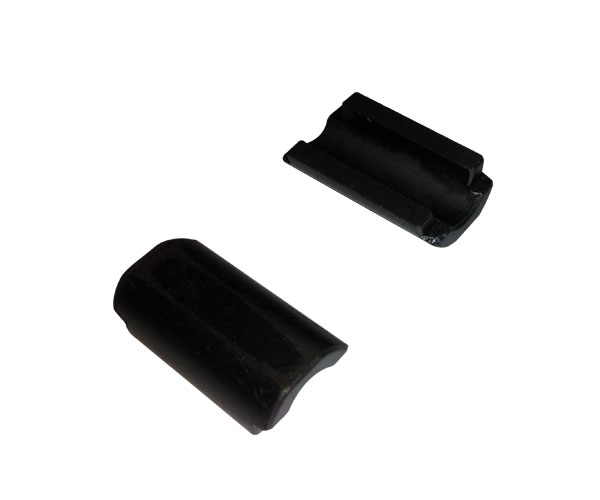

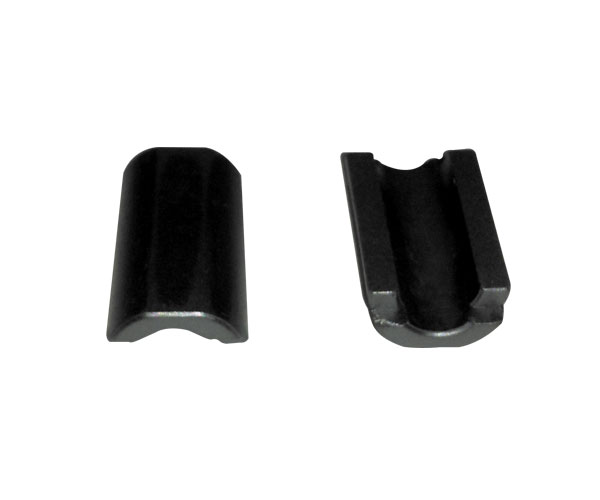

Suppression cores for round cables are available for a range of cable diameters.
Installed around a cable, these material cores, provide common-mode filtering for multi-strand cables anddifferential mode filtering for single conductors.
Polypropylene cases make the assembly of the core haves a snap.
Cores are easily installed in equipment where a retrofit proves necessary.

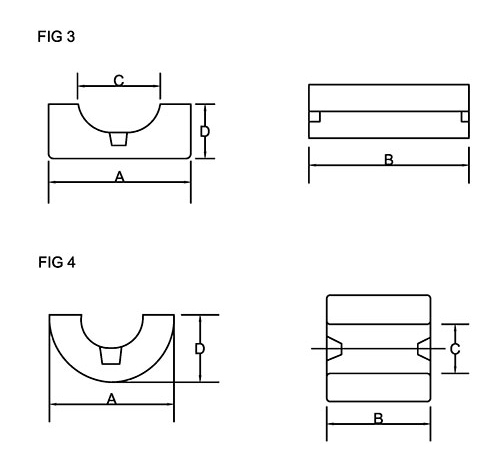

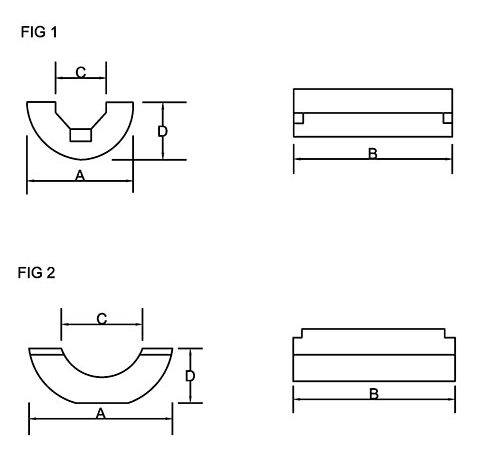

Dimensions(m/m)
| Material | Type | Core (mm) | A m/m | B m/m | C m/m | D m/m | Fig | Impedance Z1 | Impedance Z2 |
| R5 | FH | 7.65 x 7.8 x 2.3 | 7.65-0.25 | 7.8-0.5 | 2.3+0.25 | 3.9-0.25 | 3 | 25 MHZ - 45 Min | 100 MHZ - 109±20% |
| R5 | FH | 8.4 x 15.4 x 3.8 | 8.4±0.4 | 15.4±0.3 | 3.8±0.3 | 4.2±0.3 | 1 | 25 MHZ - 35 Min | 100 MHZ - 121±20% |
| R5 | FH | 9.9 x 20 x 5.3 | 9.9±0.3 | 20.0±0.3 | 5.3±0.3 | 5.1±0.2 | 1 | 25 MHZ - 55 Min | 100 MHZ - 125±20% |
| R5B | FH | 9.9 x 20 x 5.3-1 | 9.9±0.3 | 20.0±0.3 | 5.3±0.3 | 5.1±0.2 | 3 | 25 MHZ - 55 Min | 100 MHZ - 100 Min |
| R5 | FH | 9.9 x 20 x 5.3-1 | 9.9±0.3 | 20.0±0.3 | 5.3±0.3 | 5.1±0.2 | 3 | 25 MHZ - 55 Min | 100 MHZ - 125±20% |
| R5B | FH | 9.9 x 20 x 5.3-2 | 9.9±0.3 | 20.0±0.3 | 5.3±0.3 | 4.6±0.2 | 2 | 25 MHZ - 55 Min | 100 MHZ - 100 Min |
| R5 | FH | 9.9 x 20 x 5.3-2 | 9.9±0.3 | 20.0±0.3 | 5.3±0.3 | 4.6±0.2 | 2 | 25 MHZ - 55 Min | 100 MHZ - 135±20% |
| R5 | FH | 14.4 x 28 x 8 | 14.4±0.7 | 28.0±0.3 | 8.0±0.3 | 7.7±0.2 | 2 | 25 MHZ - 90 Min | 100 MHZ - 157±20% |
| R5 | FH | 15 x 29.5 x 6.6 | 15.0±0.7 | 29.5±0.3 | 6.6±0.3 | 7.5±0.3 | 3 | 25 MHZ - 120 Min | 100 MHZ - 227±20% |
| R5B | FH | 15 x 29.5 x 6.6 | 15.0±0.7 | 29.5±0.3 | 6.6±0.3 | 7.5±0.3 | 3 | 25 MHZ - 120 Min | 100 MHZ - 180 Min |
| R5 | FH | 15.9 x 13 x 7.9 | 15.9±0.4 | 13±0.3 | 7.9±0.4 | 8.0±0.3 | 4 | 25 MHZ - 40 Min | 100 MHZ - 112±20% |
| R5 | FH | 15.9 x 14.3 x 7.9 | 15.9±0.4 | 14.3±0.4 | 7.9±0.3 | 8.0±0.3 | 4 | 25 MHZ - 45 Min | 100 MHZ - 117±20% |
| R5 | FH | 15.9 x 16 x 7.9 | 15.9±0.4 | 14.3±0.3 | 7.9±0.4 | 8.0±0.3 | 4 | 25 MHZ - 55 Min | 100 MHZ - 132±20% |
| R5 | FH | 16 x 28 x 9 | 16.0±0.7 | 28.0±0.3 | 9.0±0.3 | 7.4±0.3 | 2 | 25 MHZ - 80 Min | 100 MHZ - 139±20% |
| R5 | FH | 17.5 x 12.7 x 9.5 | 17.5±0.5 | 12.7±0.5 | 9.5±0.3 | 8.8±0.3 | 4 | 25 MHZ - 35 Min | 100 MHZ - 98±20% |
| R5 | FH | 19 x 29.8 x 10 | 19.0±0.7 | 29.8±0.3 | 10.0±0.3 | 9.8±0.3 | 3 | 25 MHZ - 110 Min | 100 MHZ - 194±20% |
| R5B | FH | 19 x 29.8 x 10 | 19.0±0.7 | 29.8±0.3 | 10.0±0.3 | 9.8±0.3 | 3 | 25 MHZ - 110 Min | 100 MHZ - 155 Min |
| R5 | FH | 21 x 11.9 x 13.2 | 21.0±0.4 | 11.9±0.4 | 13.2±0.4 | 10.6±0.25 | 4 | 25 MHZ - 30 Min | 100 MHZ - 82±20% |
| R5 | FH | 25.2 x 12 x 15.5 | 25.2±0.6 | 12.0±0.3 | 15.5±0.5 | 12.7±0.3 | 4 | 25 MHZ - 30 Min | 100 MHZ - 86±20% |
| R5 | FH | 25.4 x 12.7 x 15.5 | 25.4±0.6 | 12.7±0.3 | 15.5±0.5 | 12.7±0.3 | 4 | 25 MHZ - 30 Min | 100 MHZ - 88±20% |
| R5 | FH | 25.9 x 29.7 x 13 | 25.9±0.3 | 29.7±0.3 | 13.0±0.3 | 13.5±0.3 | 3 | 25 MHZ - 110 Min | 100 MHZ - 235±20% |
