T TYPE
Enlargement
Product Name : T TYPE
Product Description

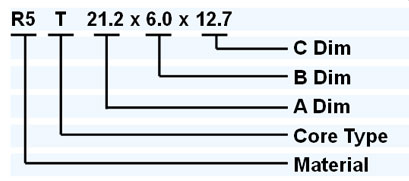

Ordering Code
Product Introduction
Shape
Description
The ring configuration provides the ultimate in the utilization of the ferrite material properties.
Power input filters, ground-fault interrupters, common mode filters, and a variety of pulse and matching transformers are only a few of the applications for this core type.
Using on : Transformer.

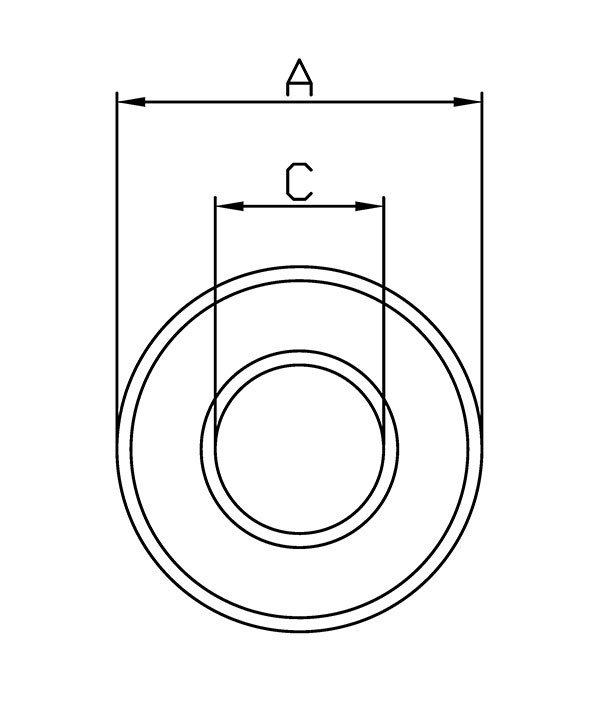

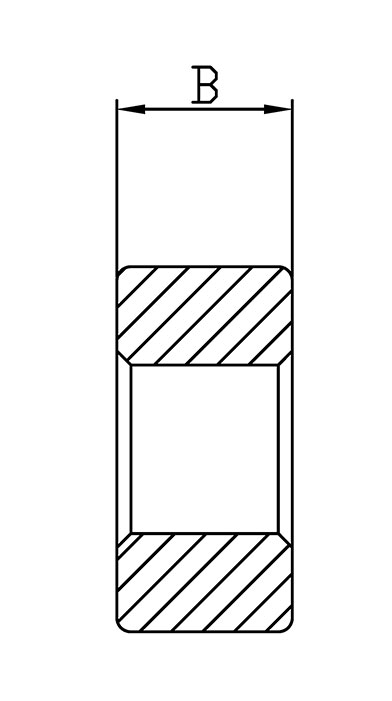

Dimensions(m/m)
| Material | Type | Core (mm) | A m/m | B m/m | C m/m | Impedance Z1 | Impedance Z2 |
| R5 | T | 3 x 1.2 x 1.2 | 3±0.2 | 1.2±0.2 | 1.2±0.2 | 25 MHZ - 11 Min | 100 MHZ - 49±20% |
| R8 | T | 3 x 1.1 x 1.2 | 3.0±0.2 | 1.1±0.2 | 1.2±0.15 | 100 MHZ - 125 Min | - |
| R5 | T | 3.05 x 0.95 x 1.3 | 3.05±0.2 | 0.95±0.2 | 1.3±0.15 | - | - |
| R5B | T | 3.05 x 0.95 x 1.2 | 3.05±0.2 | 0.95±0.2 | 1.2±0.15 | 25 MHZ - 5 Min | 100 MHZ - 9 Min |
| R3 | T | 3.5 x 1.27 x 1.8 | 3.5±0.2 | 1.27±0.2 | 1.8±0.2 | 25 MHZ - 9 Min | 100 MHZ - 50±20% |
| R5B | T | 3.5 x 1.27 x 1.8 | 3.5±0.2 | 1.27±0.2 | 1.8±0.2 | 25 MHZ - 10 Min | 100 MHZ - 49±20% |
| R3 | T | 3.5 x 1.5 x 1.8 | 3.5±0.2 | 1.5±0.2 | 1.8±0.2 | 25 MHZ - 9 Min | 100 MHZ - 51±20% |
| R3 | T | 3.94 x 1.3 x 2.2 | 3.94±0.2 | 1.3±0.2 | 2.2±0.2 | 25 MHZ - 9 Min | 100 MHZ - 50±20% |
| R3 | T | 3.95 x 1.35 x 2.15 | 3.95±0.2 | 1.35±0.2 | 2.15±0.2 | 25 MHZ - 10 Min | 100 MHZ - 51±20% |
| R5B | T | 3.95 x 1.35 x 2.15 | 3.95±0.2 | 1.35±0.2 | 2.15±0.2 | 25 MHZ - 10 Min | 100 MHZ - 49±20% |
| R8B | T | 4 x 1.2 x 2 | 4.0±0.2 | 1.2±0.2 | 2.0±0.2 | 25 MHZ - 5 Min | 100 MHZ - 23 Min |
| R8B | T | 4 x 1.5 x 2 | 4.0±0.2 | 1.5±0.2 | 2.0±0.2 | 25 MHZ - 5 Min | 100 MHZ - 23 Min |
| R5C | T | 4 x 2 x 2 | 4.0±0.2 | 2.0±0.2 | 2.0±0.2 | 25 MHZ - 13 Min | 100 MHZ - 52±20% |
| R5C | T | 4 x 2.5 x 2 | 4.0±0.2 | 2.5±0.2 | 2.0±0.2 | 25 MHZ - 14 Min | 100 MHZ - 54±20% |
| R5 | T | 4.3 x 1.5 x 2.8 | 4.3±0.2 | 1.5±0.2 | 2.8±0.2 | 100 MHZ - 1150±30 |
